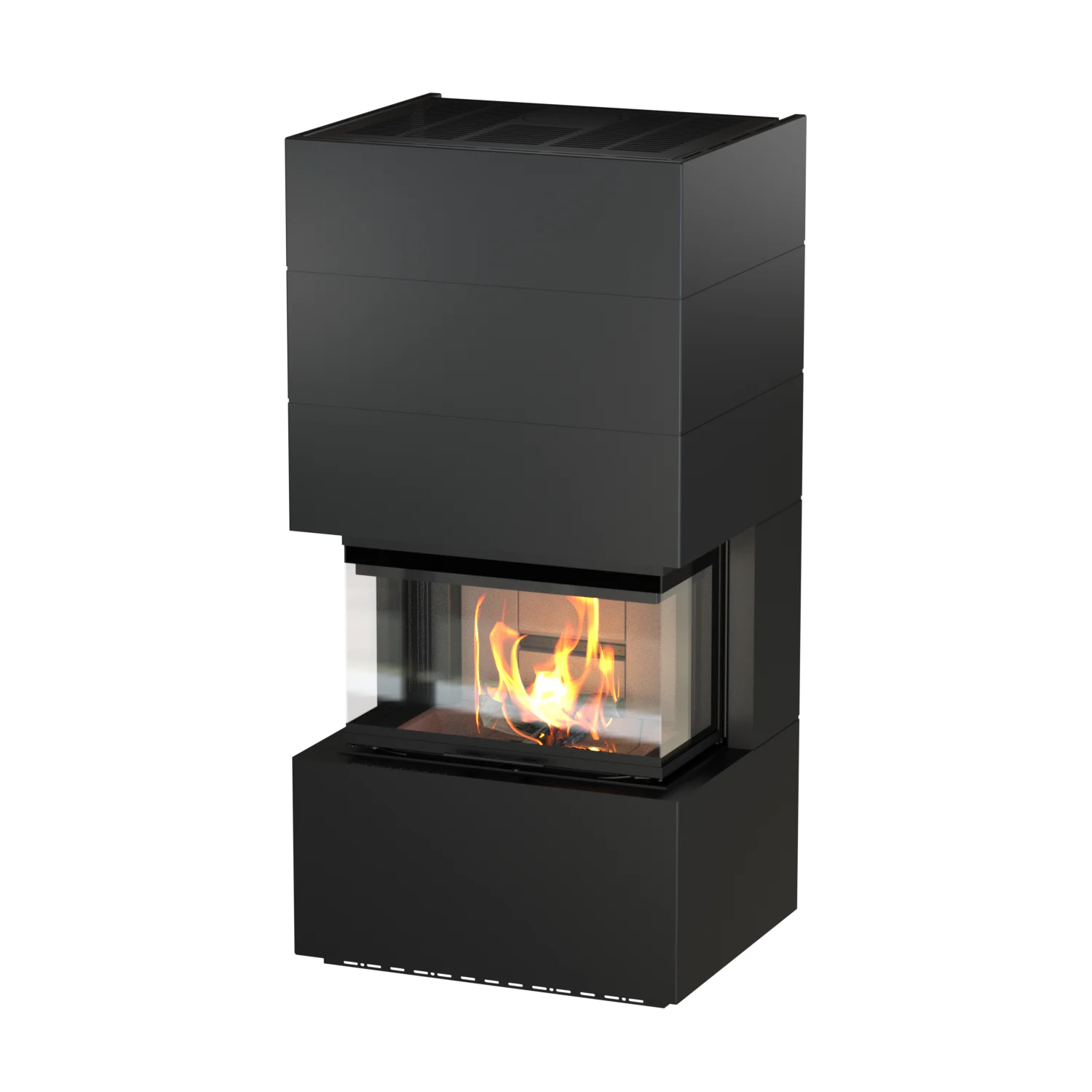

Adastra 800 Plus Line – Black, three-part glass
5.399,00 €
High-quality fireplace stove with a power of 12.5 kW and three-part glass combines the concepts of spaciousness and revised classics. With a sliding mechanism on the firebox door, the firebox is coated with high-quality thermoconcrete that is resistant to temperatures higher than 1000 C, and thanks to its thermoaccumulation effect, it successfully maintains high temperatures. The window flushing system, which prevents the glass from smoldering and the supply of tertiary air, which ensures the effect of subsequent combustion, enables first-class combustion, low emission values and a high level of efficiency.
In stock
Energy classes
Identities: A15-546PLL.R00
Performance and equipment | |
---|---|
Fireplace body | Black steel |
Fireplace lining | Black steel with decorative lines |
Firebox lining | Termo-concrete |
Air regulation | Manual |
Window flushing function | (secondary air supply) |
Flue outlet | At the top or back |
Flue connection | Ø 200 mm |
External air supply connection | Ø 150 mm |
Dimensions and weights | |
---|---|
Height | 1960 mm |
Width | 965 mm |
Depth | 798 mm |
Weight | 590 kg |
Max. Length of wood | 650 mm |
Windshield dimensions (HxW) | 447x789 mm |
Side glass dimensions (HxW) | 447x 357 mm |
Distance to flammable objects (rear / side / front / above) | 0 mm / 800 mm / 800 mm |
Performance data | |
---|---|
Nominal power | 12,5 kW |
Efficiency | 80,3% |
Combustion | 2,8 kg/h |
Exhaust gas flow | 11,9 g/s |
Exhaust gas temperature | 238 ° C |
Vacuum | 12 Pa |
Fine dust | 26 mg/Nm3 |
Approval | |
---|---|
DIN EN 13240 | BlmSchV: Yes, 2. level |
