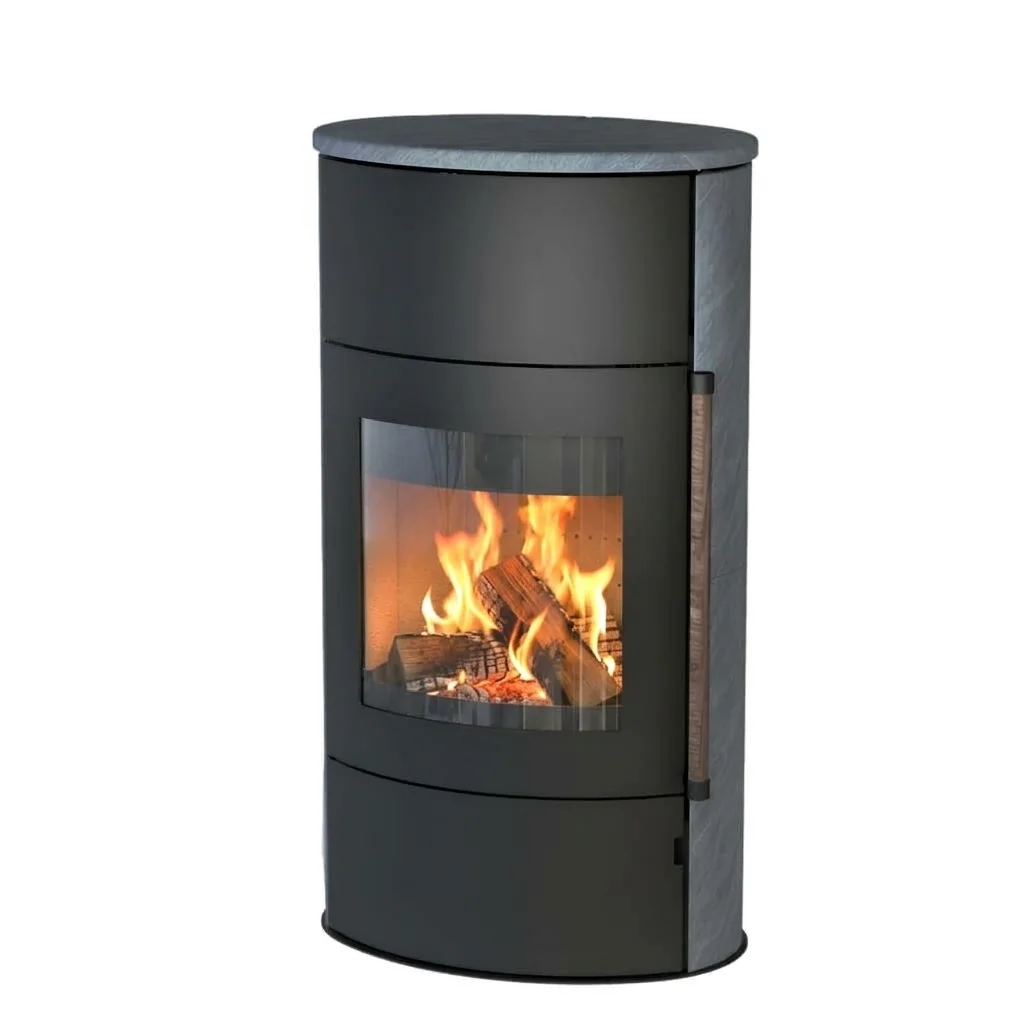

Madagascar 510 V3 – Black, natural stone

3.299,00

With its size, it will give everyone the pinnacle of pleasure that fire can give, and in addition it will warm the space and its soul. A round steel body and a large panoramic door with a rounded shape that always give the best view of the flame with the air-cleaning glass system. With a nominal power of 8 kW, this fireplace stove gives a new warmth to the space.

In stock

Energy classes

Identities: A15-548V3.R00

Execution and equipment
Fireplace body Black steel
Fireplace lining Black steel
Firebox lining Vermiculite
Air regulation Manual
Flue outlet At the top or back
Flue connection Ø150mm
External air supply connection Ø100mm
Dimensions and weights
Height 1295 mm
Width 710 mm
Depth 510 mm
Weight 187 kg
Max. Length of wood 500 mm
Windshield dimensions (HxW) 428x547x245 mm
Performance data
Nominal power 8 kW
Efficiency 80,31 %
Combustion 2,42 kg/h
Exhaust gas flow 6,36 g/s
Exhaust gas temperature 340 ° C
Vacuum 12 Pa
Fine dust 25 mg/Nm3
Approval
DIN EN 13240 BlmSchV: Yes, 2. level
