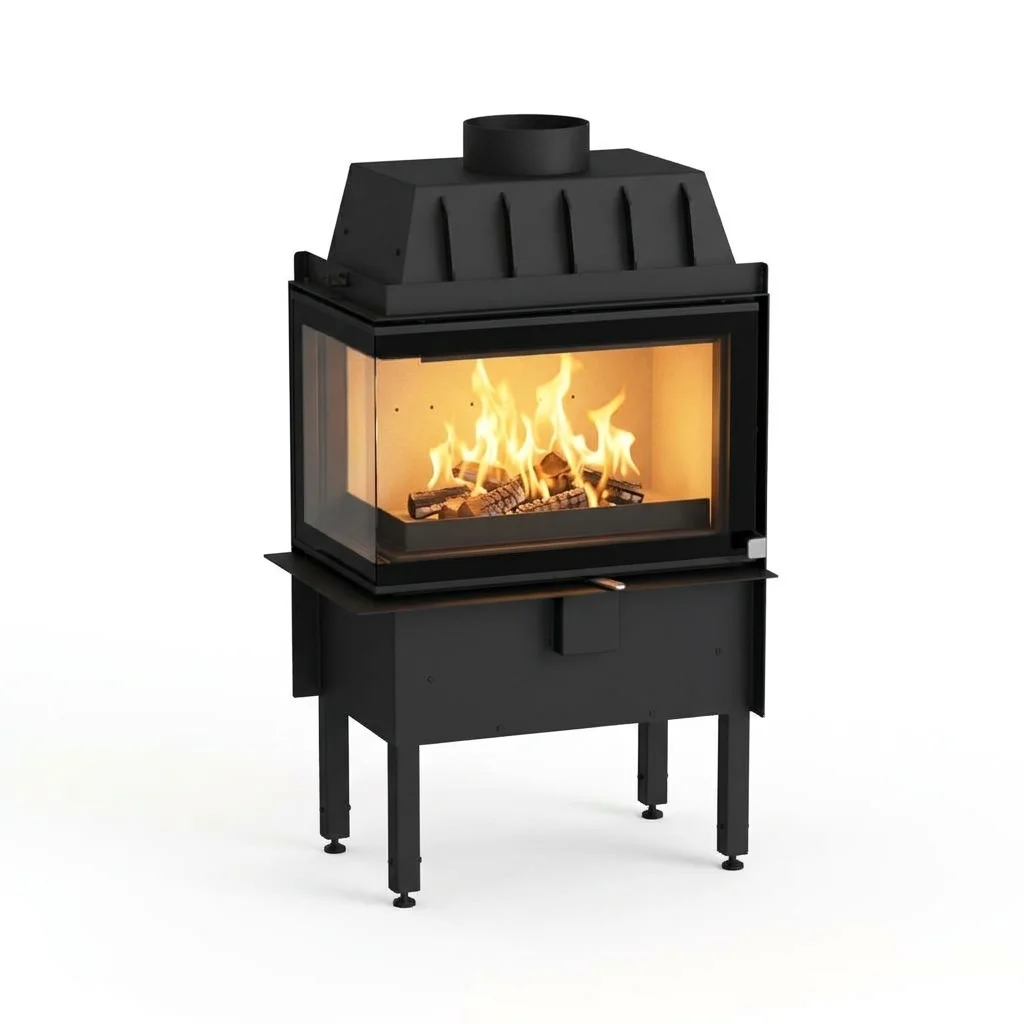

Integra (left) – Black, angular

1.486,36  (11.198,98 kn)

Integra is an angular built-in fireplace insert that has a large double-sided window in the shape of the letter L. The firebox is lined with vermiculite which ensures high temperatures in the firebox and thus a high level of efficiency. The fireplace insert is extremely suitable for evening gatherings because it creates a pleasant and homely ambience, and at the same time provides a great source of energy.

On request

Energy classes

Identities: A15-50300L.R00

Performance and equipment
Fireplace flow Black steel
Fireplace lining Vermiculite
Air regulation Manual
Window flushing function (secondary air supply)
Flue outlet On top
Flue connection Ø 200 mm
External air supply connection Ø 120 mm
Dimensions and weights
Height 1200 mm
Width 677 mm
Depth 510 mm
Weight 99 kg
Max. Length of wood 400 mm
Windshield dimensions (HxW) 318x587 mm
Side glass dimensions (HxW) 318x328 mm
Distance to flammable objects (rear / side / front / above) 60 mm/ 800 mm/ 800 mm / 500 mm
Performance data
Nominal power 8 kW
Efficiency 80,1 %
Combustion 1,28 kg/h
Exhaust gas flow 8,4 g/s
Exhaust gas temperature 270 ° C
Vacuum 12 Pa
Fine dust 34 mg/Nm3
Approval
DIN EN 13229 BlmSchV: Yes, 2. level
